RFcreations Bluetooth Protocol Analyzers & Test Equipment
Professional-grade sniffers and test equipment from RFcreations. Novel Bits is your exclusive North American source for support and fast shipping.
All pricing standardized — no markup • Direct support from Novel Bits • Ships from US warehouse
Why Engineers Choose RFcreations
Industry-leading Bluetooth test solutions for development, debugging, and certification.
Full 2.4 GHz ISM Band Coverage
Capture and analyze the entire 2.4 GHz spectrum simultaneously. See Bluetooth, Wi-Fi, Zigbee, and interference sources in one view.
Multi-Standard Protocol Analysis
blueSPY software provides concurrent decoding of Bluetooth Classic, Bluetooth LE, and LE Audio — all three standards analyzed simultaneously.
Portable Options Available
mini-moreph features autonomous capture mode — power via USB battery, no laptop required. Pairs with Android companion app for field captures.
Channel Sounding Support
The morephCS is validated by Bluetooth SIG for Channel Sounding PHY testing — essential for next-gen ranging and positioning applications.
Product Lineup
Professional Bluetooth test equipment for every use case
Protocol Analyzers
Capture and decode Bluetooth traffic in real-time

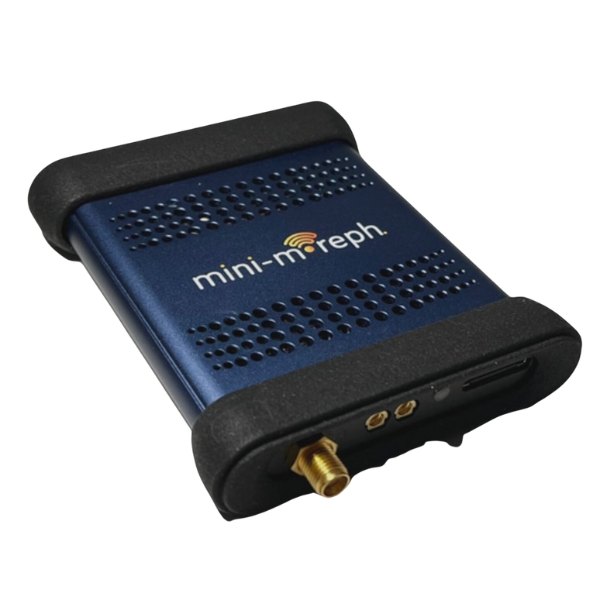

mini-moreph
Compact wideband Bluetooth 6.0 protocol analyzer that captures the entire 2.4 GHz ISM band. Features autonomous capture mode for field testing — no laptop required.
- Full 2.4 GHz ISM band capture
- USB-powered — no external power needed
- Autonomous capture mode supported
- Android companion app for field captures
- Works with blueSPY on Windows, macOS, Linux

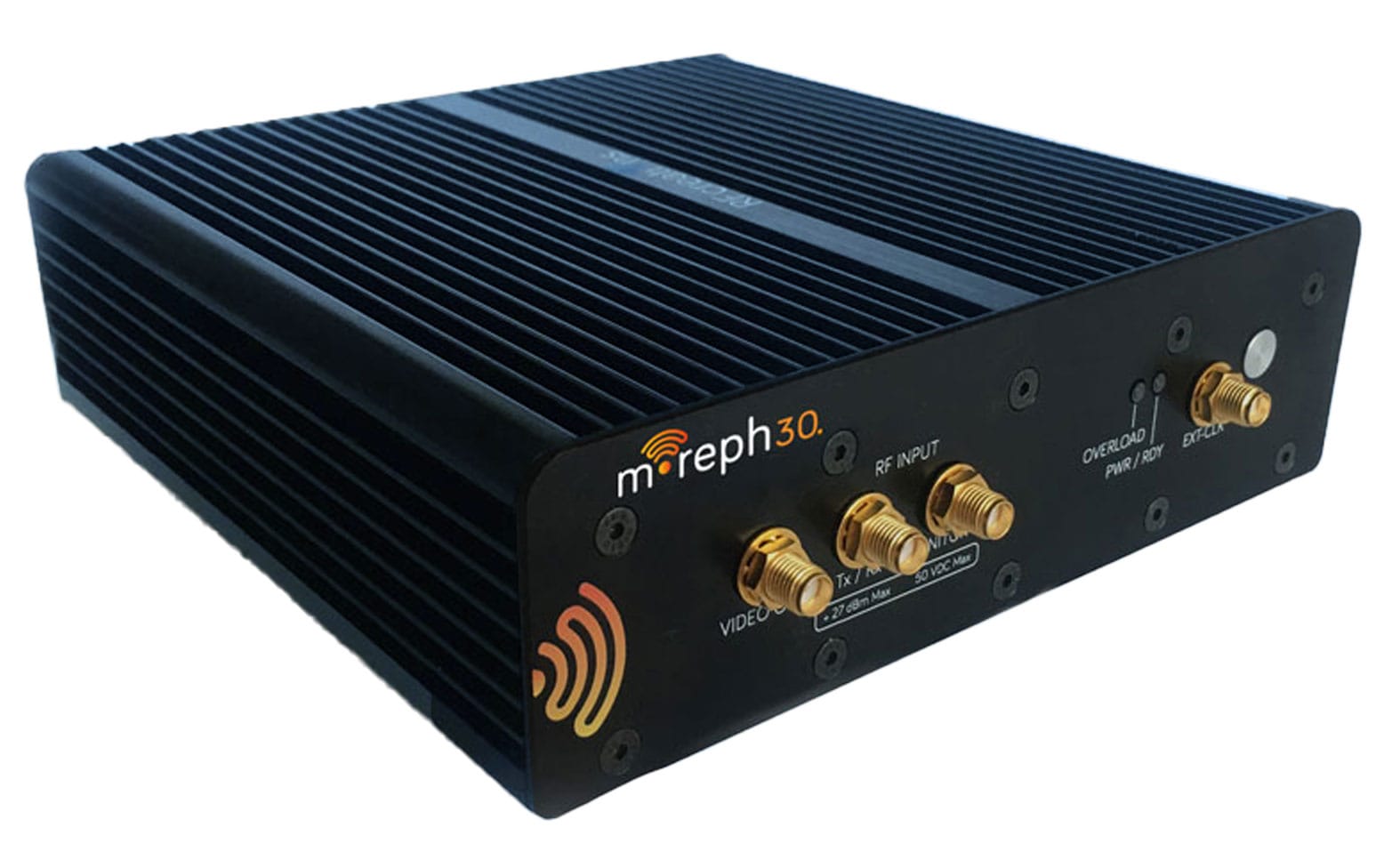

moreph30
Wideband 2.4 GHz signal analyzer and generator designed for PHY layer testing. Supports all Bluetooth 6.0 RF-PHY test cases with no additional test equipment required.
- All BT 6.0 PHY test cases supported
- Built-in 6GHz CW signal generator
- Ultra-linear RX/TX chain
- USB + Ethernet interfaces

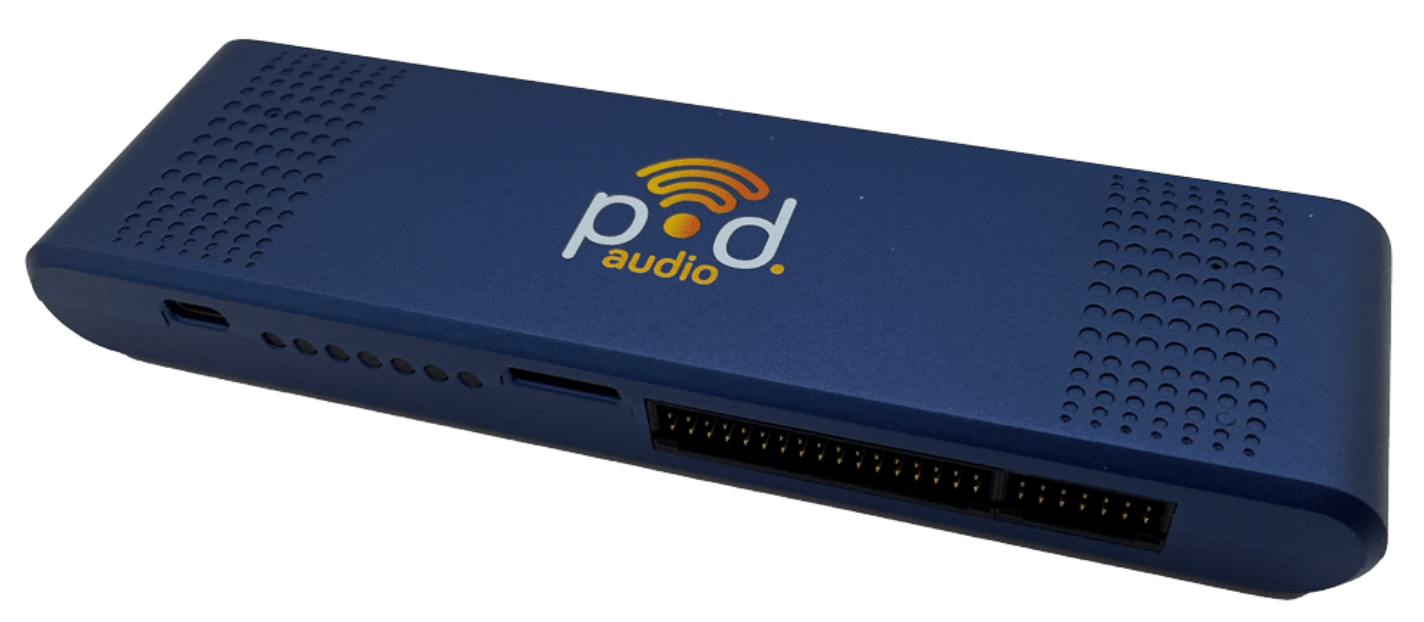

audiopod
USB-powered audio measurement tool for LE Audio and Auracast testing. Measure end-to-end latency including presentation delay — essential for LE Audio compliance.
- LE Audio latency measurements
- Presentation delay testing
- Multiple audio interfaces (analog, S/PDIF, I2S)
- Integrates with mini-moreph/moreph30
Advanced Test Equipment
Specialized tools for RF testing and certification

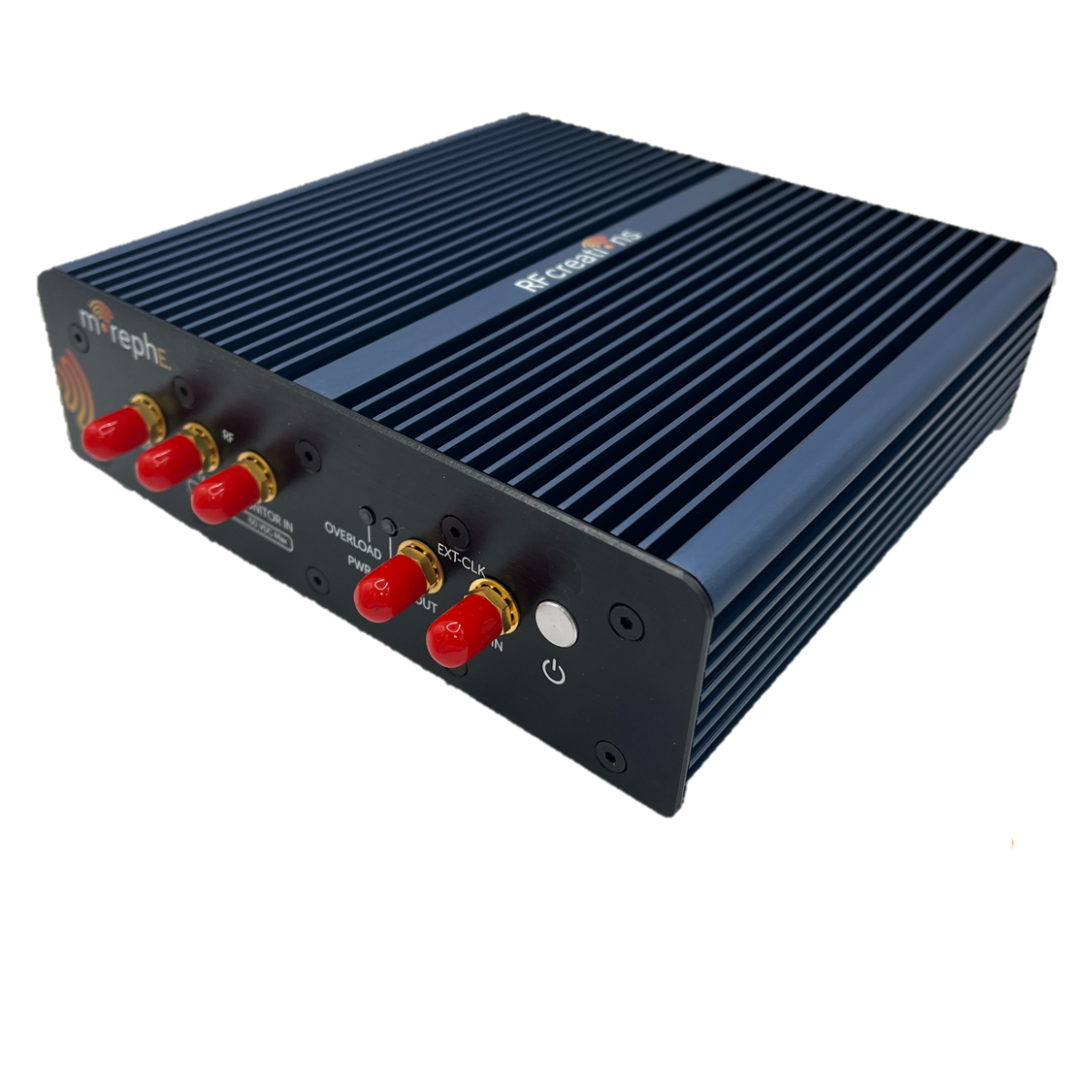

morephE
RF record/playback expansion for moreph30. Record the entire 2.4 GHz ISM band for up to 4 hours, then play back to create reference RF environments for repeatable testing.
- Record up to 4 hours (90MHz bandwidth)
- Full ISM band playback
- Create reference RF environments
- Requires moreph30

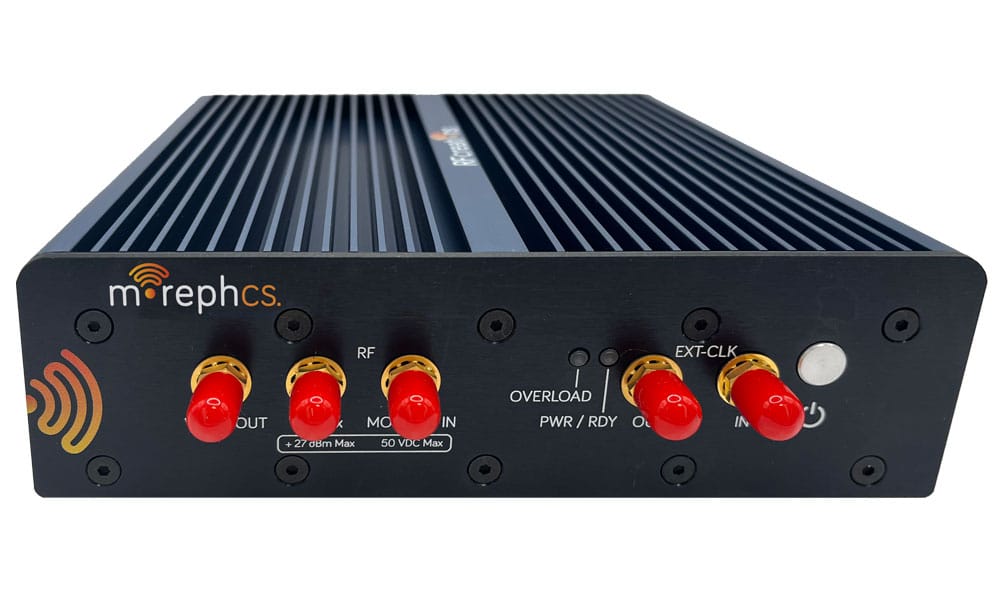

morephCS
Channel Sounding Physical Layer RF Tester for moreph30. Validated at Bluetooth SIG IOP sessions — supports all CS RF-PHY and CS Layer test cases.
- All CS RF-PHY test cases supported
- Used at Bluetooth SIG IOP sessions
- Export raw IQ data + spectrograms
- Requires moreph30

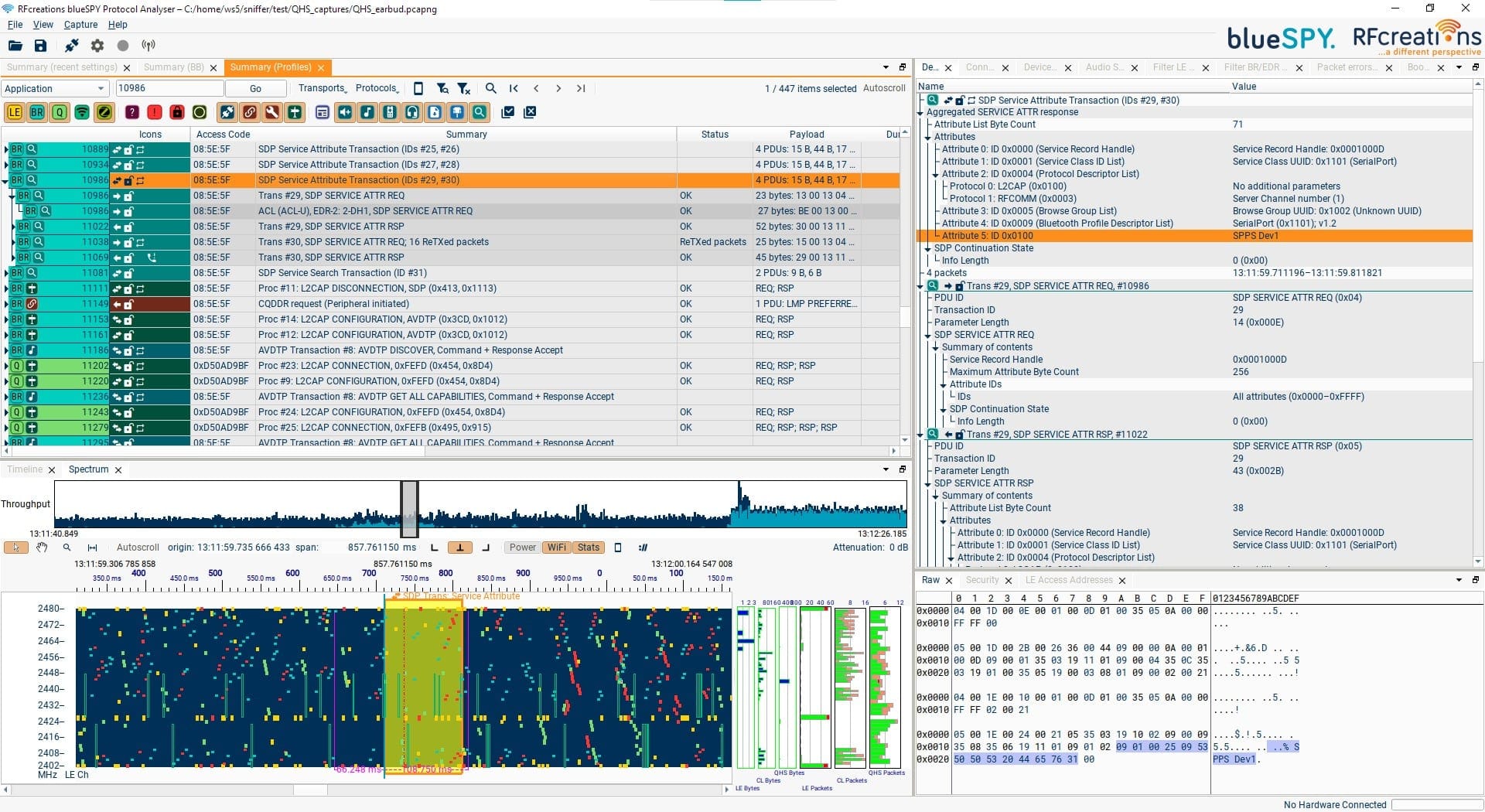

blueSPY Protocol Analyzer Software
Concurrent multi-standard Bluetooth protocol analyzer — perpetual license, no recurring fees
Cross-Platform
Works on Windows, macOS, and Linux. Compatible with mini-moreph and moreph30 hardware platforms.
Multi-Standard Decoding
Simultaneously decode Bluetooth Classic, Bluetooth LE, and LE Audio. No switching between modes required.
Deep Packet Analysis
Full protocol stack decoding from PHY layer through application profiles. See exactly what's happening on the air.
Capture & Export
Record sessions for later analysis. Export to standard formats for documentation and compliance reporting.
Frequently Asked Questions
Ready to Elevate Your Bluetooth Testing?
Schedule a demo to see RFcreations tools in action and discuss your specific testing requirements.
